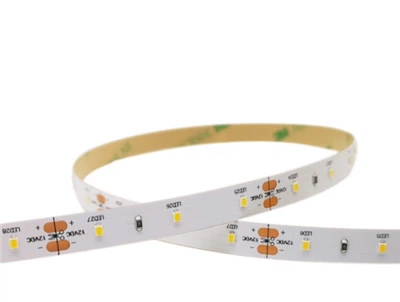

Mini LED SMD Strip Light 24V for Decorative Indoor Lighting

The Mini LED SMD Strip Light 24V features 2216 SMD high-density LEDs (120LED/m) and an 8mm narrow PCB design. It operates at DC24V and has a power of 9.6W–12W/m, making it suitable for cabinets, furniture, display cases, and linear decorative lighting.

Send Inquiry

Product Introduction

Product Introduction

Technical Parameters

Feature	Specification
Power Consumption	9.6W / 12W per meter
Input Voltage	12V / 24V DC
LED Type	2216 SMD (San'an Chip)
LED Density	120 LEDs/m
Cutting Unit	25mm (12V) / 50mm (24V)
PCB Width	8mm
Copper Weight	3oz
Color Rendering (CRI)	Ra >90
Color Consistency	SDCM <3
Color Temp (CCT)	2700K – 6000K (Warm to Cool White)
Standard Packaging	5m / Reel

product-1230-423

Product Advantages

More Uniform Light
120 2216 LEDs per meter, with close spacing between LEDs for more continuous light.

Stable and Efficient
Utilizes San'an chip 2216 LEDs, offering high luminous efficiency and excellent thermal stability.

More True-to-Life Colors
Color Rendering Index (CRI) ≥ 90, accurately reproducing object colors, suitable for commercial displays and home lighting.

Better Heat Dissipation
Equipped with a 3oz thick copper flexible PCB for superior thermal conductivity.

Customization Services

Customizable Light Color
Supports color temperatures from 2700K to 6000K or special light colors.

Customizable Power and Brightness
Offers power options such as 9.6W/m and 12W/m.

Customizable Length and Cable
Standard 5m/roll, custom lengths and power cord specifications available for engineering projects.

Customizable Waterproof Rating
Available in IP20, IP65, and IP67 versions.

Customizable Connection Method
Supports various connectors or solder joints.

Quality Control

Incoming Material Control: LED chips and PCBs undergo photoelectric parameter detection and sorting to ensure consistency.

Production Control: Automated SMT placement and reflow soldering processes are used to ensure stable soldering.

Product Testing: All LED strips undergo power-on and aging tests to ensure stable operation.

Outgoing Inspection: Appearance, brightness, and random sampling are performed before shipment to ensure batch consistency.

FAQ

Q: What is the maximum continuous installation length of the LED strip?

A: A 24V system provides more stable voltage. For single-ended power supply, a maximum length of 10 meters is recommended. For longer installations, dual-ended power supply is recommended.

Q: Can the LED strip be bent for installation?

A: Yes. The flexible FPC design allows for installation along straight lines or gentle bends, but vertical bending at the LED position is not recommended.

Q: Does it need to be used with an aluminum profile?

A: Recommended. The aluminum profile enhances heat dissipation and improves light uniformity while protecting the LED strip.

Q: Can the LED strip be cut on-site?

A: Yes. It can be cut according to the cutting markings on the LED strip without affecting the normal operation of other LEDs.

Q: Is the product suitable for long-term continuous use?

A: Yes. The LED strip is designed for stable operation over extended periods and is suitable for commercial and engineering lighting.

Q: Can it be used in large-scale lighting projects?

A: Yes. The product is suitable for commercial spaces, hotels, shopping malls, and exhibition lighting projects.

Q: Is after-sales service provided?

A: A 2-year warranty is provided. Technical support or replacement is available for quality issues under normal use conditions.
