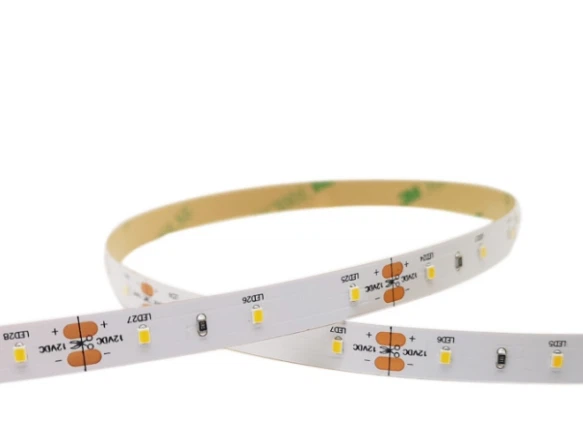

Flexible 2216 SMD LED Strip Dimmable for Home Lighting

The Flexible 2216 SMD LED Strip Dimmable is a flexible dimming light strip using SMD2216 high-density LEDs (60 LEDs/m), suitable for cabinet lighting, display case lighting, home ambient lighting, and commercial linear lighting.

Send Inquiry

Product Introduction

Product Introduction

Technical Parameters

Parameter	Details
Model / LED Type	SMD 2216 (San'an Chip)
Power Consumption	4.8W / Meter
Input Voltage	DC 12V
LED Density	60 LEDs / Meter
Color Temperature	2700K – 6000K (Warm to Cool White)
CRI / SDCM	Ra >90 / SDCM <3
PCB Width	10mm (2oz Copper)
Cutting Unit	Every 50mm
Standard Packaging	5 Meters / Reel

product-1070-404

Product Advantages

High Color Rendering: Utilizes San'an LED chips, CRI>90, SDCM<3, ensuring high color consistency.

More Uniform Light: The light strip features a high-density arrangement of 60 LEDs/m, resulting in fewer light spots and continuous brightness.

Thickened PCB for Enhanced Stability: Employs a 10mm wide 2oz copper PCB board for improved thermal conductivity.

Customization Services

Customizable Light Color
Supports customizable color temperatures of 2700K / 3000K / 4000K / 6000K, etc.

Customizable Power and Brightness
Customizable LED density and brightness schemes.

Customizable Length and Cable
Supports customization of LED strip length, connecting cable specifications, and cable length.

Customizable Connector Type
Supports DC connectors, quick-connect terminals, and soldering interfaces.

Customizable Branding
Supports customization of PCB silkscreen logo, product labels, and model numbers.

Quality Control

Incoming Material Inspection: All raw materials, including LED chips, PCBs, and power cords, comply with RoHS standards.

Production Control: Automated SMT (Surface Mount Technology) assembly ensures strong solder joints and high product consistency.

Product Testing: Brightness, color temperature, electrical properties, and aging tests are conducted (8-12 hours).

Outgoing Inspection: Finished products undergo appearance and functional inspection, plus random sampling, to ensure no dead LEDs and no color differences.

FAQ

Q: What is the minimum order quantity (MOQ)?

A: Standard MOQ: 100 rolls (5m/roll). Custom orders require separate confirmation.

Q: What is the production cycle?

A: Standard orders: 5-7 days. Custom orders: 10-15 days.

Q: Can you provide samples?

A: Samples can be provided for testing. Sample fees are refundable for bulk orders.

Q: Can it be used with aluminum profile light troughs?

A: Yes, suitable for linear lighting and cabinet light trough installation.

Q: What is the maximum length of a single strip?

A: Recommended: Single-end power supply ≤ 5 meters. Longer lengths require segmented power supply.

Q: Do you support long-term bulk supply?

A: Yes, the factory can stably produce in bulk and supply long-term.

Q: Do you provide quality assurance?

A: We provide factory inspection and quality assurance services.

Q: Do you have export certifications?

A: CE, RoHS, and other certification documents can be provided.
