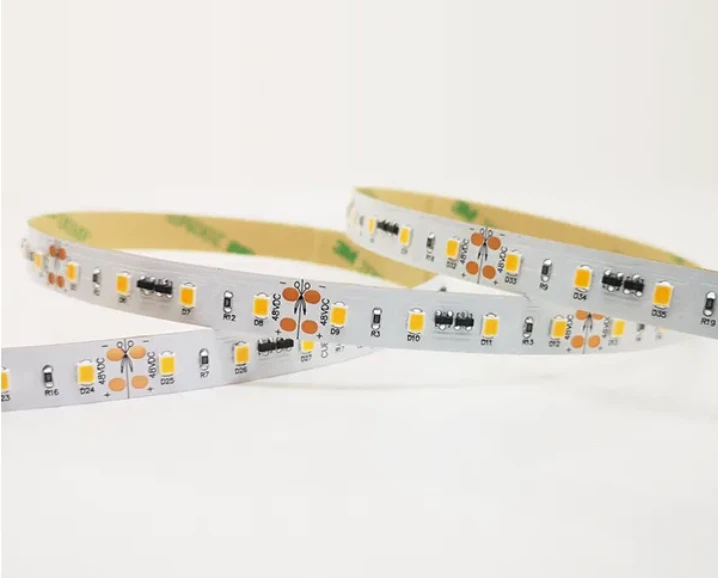

48V LED Strip Bendable for Various Designs 50M/Reel Ultra Long

The 48V LED Strip Bendable is a flexible light strip powered by DC48V and featuring a high-density SMD2835 LED design, suitable for architectural contour lighting, commercial linear lighting, and interior decorative lighting.

Send Inquiry

Product Introduction

Product Introduction

Technical Parameters

Parameter	Specifications
Power Consumption	6W / 12W per meter
Input Voltage	DC 48V
LED Type	SMD 2835 (San'an Chip)
LED Density	80 LEDs/m
Cutting Unit	50mm
PCB Dimensions	10mm width / 3oz Copper
Color Consistency	SDCM <3 / <5
CRI	Ra >80 / 90 (Optional)
Color Temperature	2700K – 6000K
Standard Packaging	35m / 50m per Reel
Warranty	3 Years

Product Advantages

48V Power Supply
DC 48V power supply draws less current than 12V/24V systems, reducing voltage drop.

High-Density LEDs
The light strip uses SMD2835 LEDs, arranged at 80 LEDs/m, creating continuous and uniform light output.

High Color Rendering Index
Supports CRI Ra>80 or Ra>90, providing more accurate color reproduction.

Flexible Installation
The flexible FPC structure can be bent freely, suitable for installation on curved surfaces or complex contours.

Customization Services

Light Color Customization: 2700K / 3000K / 4000K / 5000K / 6000K, CRI>80 or CRI>90.

Power and Brightness: Supports 6W/m or 12W/m brightness versions.

Length and Cable: Supports 35m and 50m reels or custom lengths and input cable specifications.

Waterproof Rating: Customizable IP20 / IP65 / IP67 / IP68.

Connector Type: Supports DC connectors, quick connectors, or engineering terminals.

Branded Packaging: Supports OEM/ODM, logo printing, and customized packaging.

Quality Control

Raw Material Inspection

Core materials such as San'an LED chips, 3oz copper PCBs, and FPC substrates undergo incoming material inspection.

Automated Production
SMT automated placement process is used to ensure LED soldering quality and arrangement accuracy.

Performance Testing
All products undergo 100% power-on testing and aging testing to ensure stable operation.

Outgoing Inspection
Appearance, brightness, and color temperature consistency are tested before shipment to ensure batch stability.

FAQ

Q: What are the advantages of 48V LED strip lights compared to 24V strip lights?

A: 48V strip lights draw less current, reducing voltage drop and allowing for longer power supply distances. For long-distance installations or large-scale projects, this reduces the number of power supplies and wiring costs.

Q: What is the maximum continuous length of a single strip light?

A: Standard reels are 35m or 50m. Under appropriate power supply conditions, long-distance continuous installations can be achieved with stable brightness.

Q: What power supply is required for installation?

A: A DC 48V constant voltage LED power supply is required. It is recommended to allow a 20% margin in power consumption to ensure stable system operation.

Q: Can it be used for outdoor projects?

A: Yes. Different protection rating versions are available depending on project requirements, suitable for both indoor and outdoor lighting environments.

Q: Can the strip light be cut on-site?

A: Yes. The strip light has fixed cutting positions. During installation, it can be cut to the required length according to the markings without affecting the remaining strip light usage.

Q: Do you support bulk purchases for engineering projects?

A: Yes. We specialize in bulk orders and engineering project supply, providing stable production capacity and long-term supply guarantees.

Q: What is the typical delivery time?

A: Standard specifications generally ship within 7–15 days. The specific time depends on the order quantity and customization requirements.
